PRO R1PLUS F

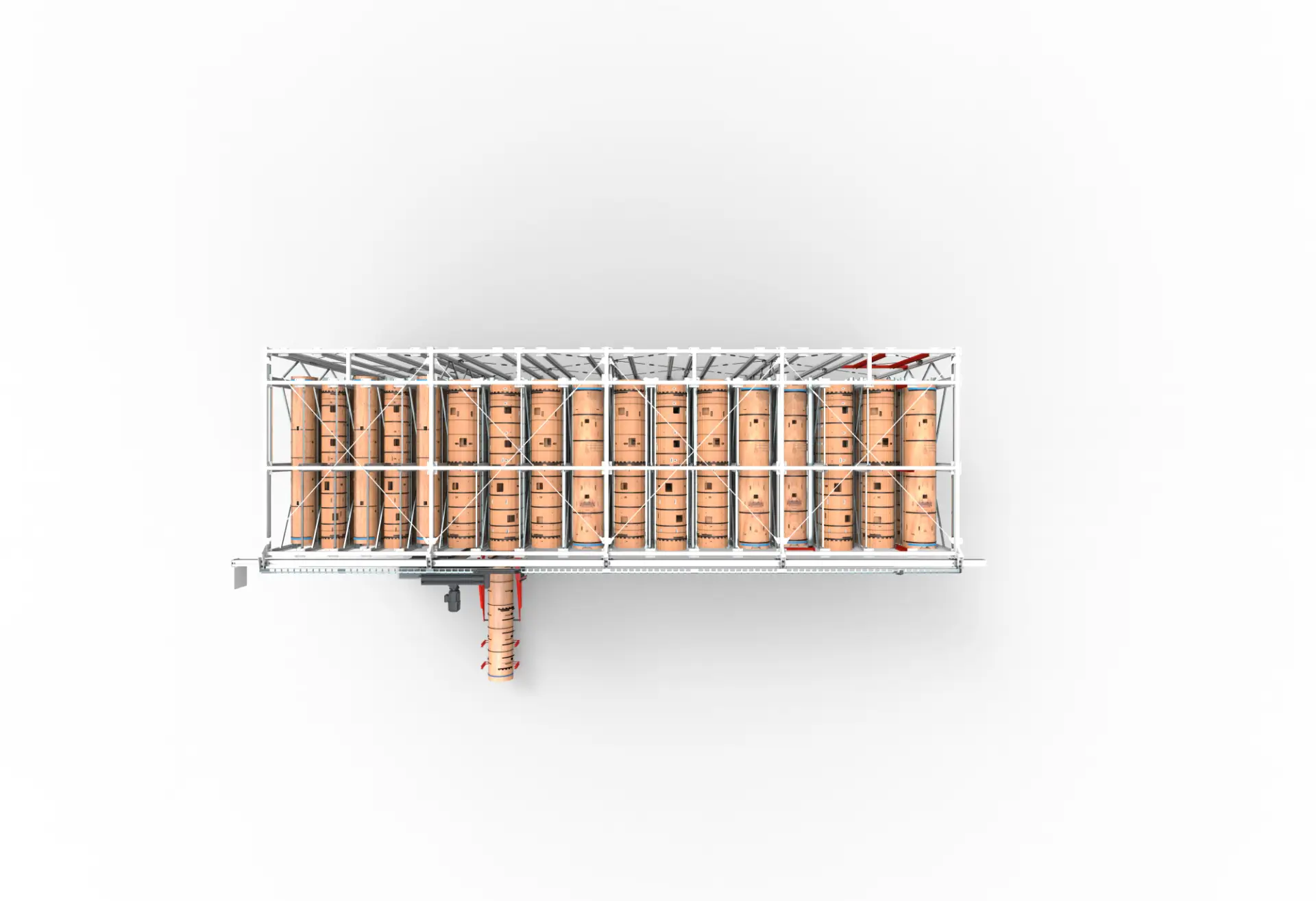

The LETTERO PRO R1PLUS F  system consists of  single rack storage with special guide rails which allow for the direct placement of dies using a stacker crane.

The manually moved crane is guided by intelligent software.

The operator selects or scans the required rotary die using the touchscreen interface, and the system automatically identifies its exact storage location and guides the die carriage accordingly.

The horizontal movement of the rotary die in and out of the rack is performed automatically.

The ergonomic control panel and surveillance cameras provide a quick access to all storage levels from the operator’s position. The software is intuitive, user-friendly and can be extended with a storage management module. The selected system options comply with Industry 4.0 requirements.

This storage type accommodates both single and double rotary dies, depending on customer preference.

The magazine’s design and materials ensure exceptional rigidity, long-term durability, and mechanical precision.

Rotary dies are transported to the warehouse, where they are collected by a stacker crane using a special rotary die trolley. These trolley can hold 3 or 6 dies and are easy for a single operator to maneuver.
